Ceramic Products > Labware

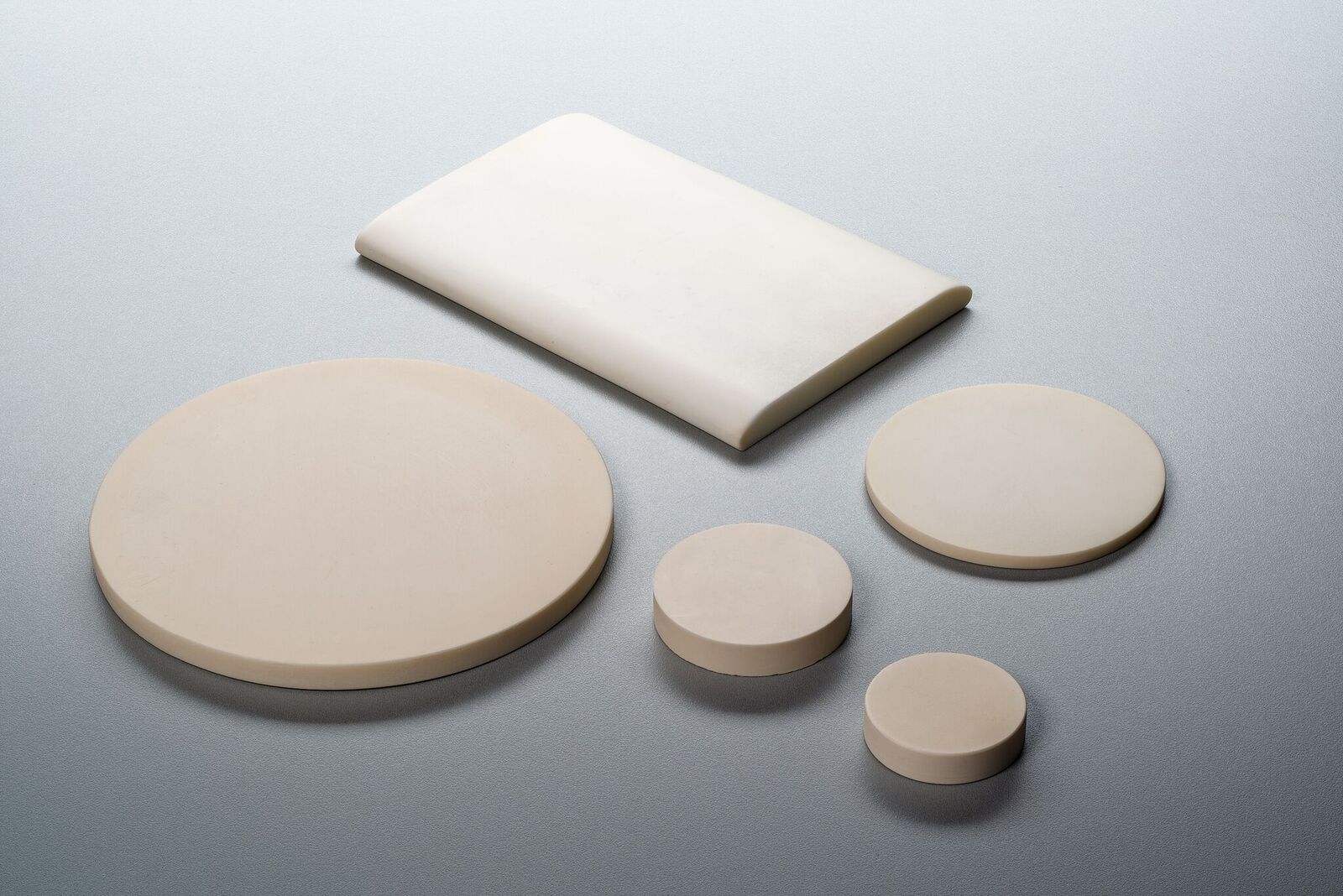

Tiles and Discs

Dense, high strength tiles for abrasion resistance, armour plate, reaction trays etc.

Our standard sizes are:

  • 75 x 75 x 8
  • 115 x 115 x 10
  • 175 x 175 x 10
  • 150 x 100 x 10

We can also make sizes from a few mm up to 183 x 183 mm, up to 12 mm thick, square, rectangular or circular.

Product number Width Length Thickness
Perry Tile 150 100 10
Tile 75 75 75 8.5
Tile 105 105 105 13
Tile 115 115 115 10.5
Tile 115 Thick 115 115 13
Tile 175 175 175 10
Tile 183 183 183 10

Product number Top ⌀ Thickness
CLS/Disc 23x3 23 3
CLXL/Disc 135x8 135 8
Disc 205x12 205 12
Disc 240x14 240 14
Disc 34x5 34 5
Disc 40x10 40 10
Disc 49x13 49 13
Disc 65x5 65 5
Disc 80x4 80 4
Disc 85x5 85 5
Rulf disc/Disc 52x6 52 6
WD-084 lid with hole 6.75 0.8
WD-084 lid no hole 6.75 0.8
† All measurements are outer dimensions. Individual pieces will vary due to the nature of ceramics.

See also our rectangular trays and shallow dishes.

Hearth tiles

Hearth tiles are used to protect the expensive base of fibre lined kilns from corrosive spills. They are made of porous, coarse grain 99% alumina and in a range of sizes up to 300mm x 300mm, as flat tiles or shallow trays.
