Crucibles and labware

See microcrucibles

Ceramic Products > Labware

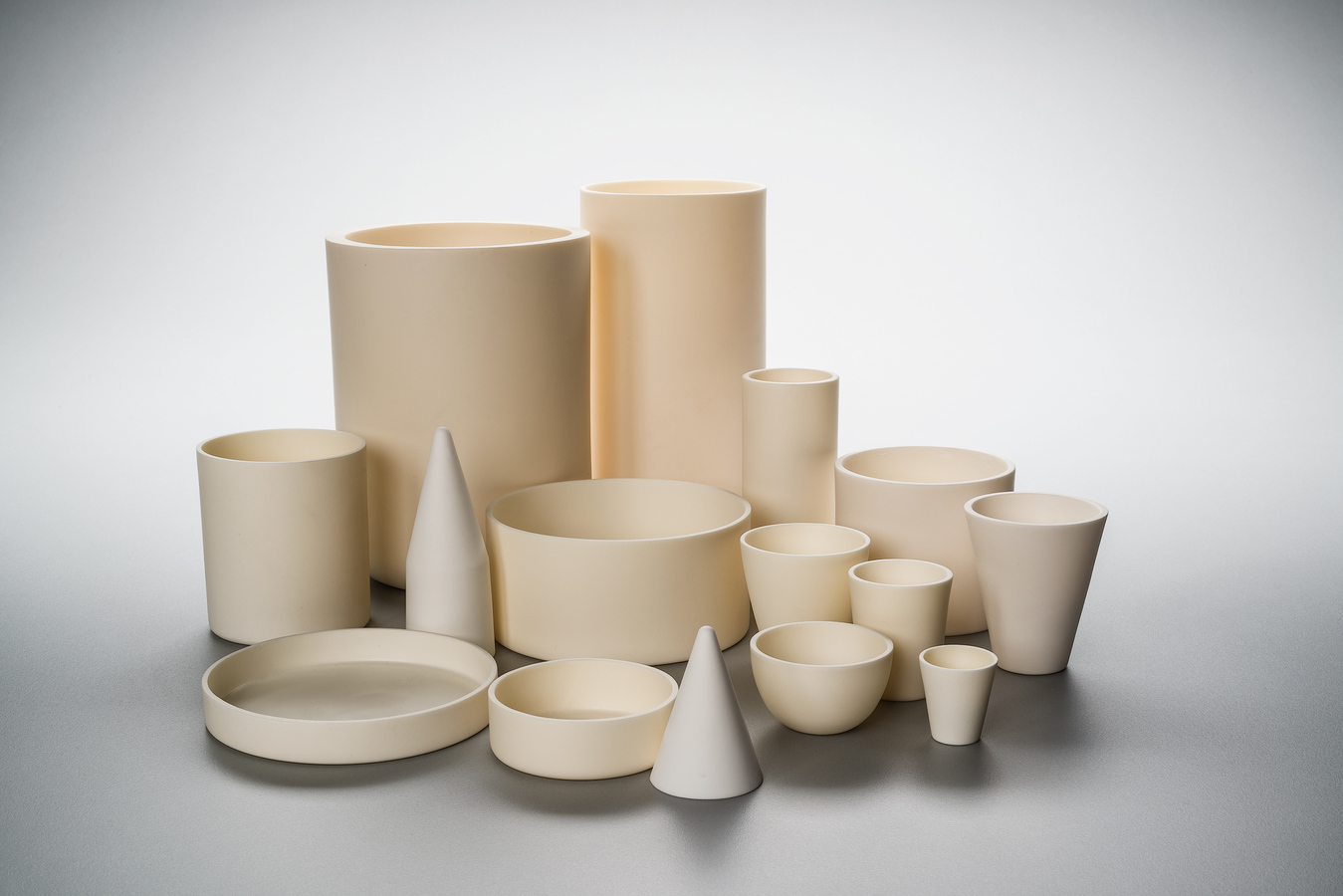

Crucibles and Dishes

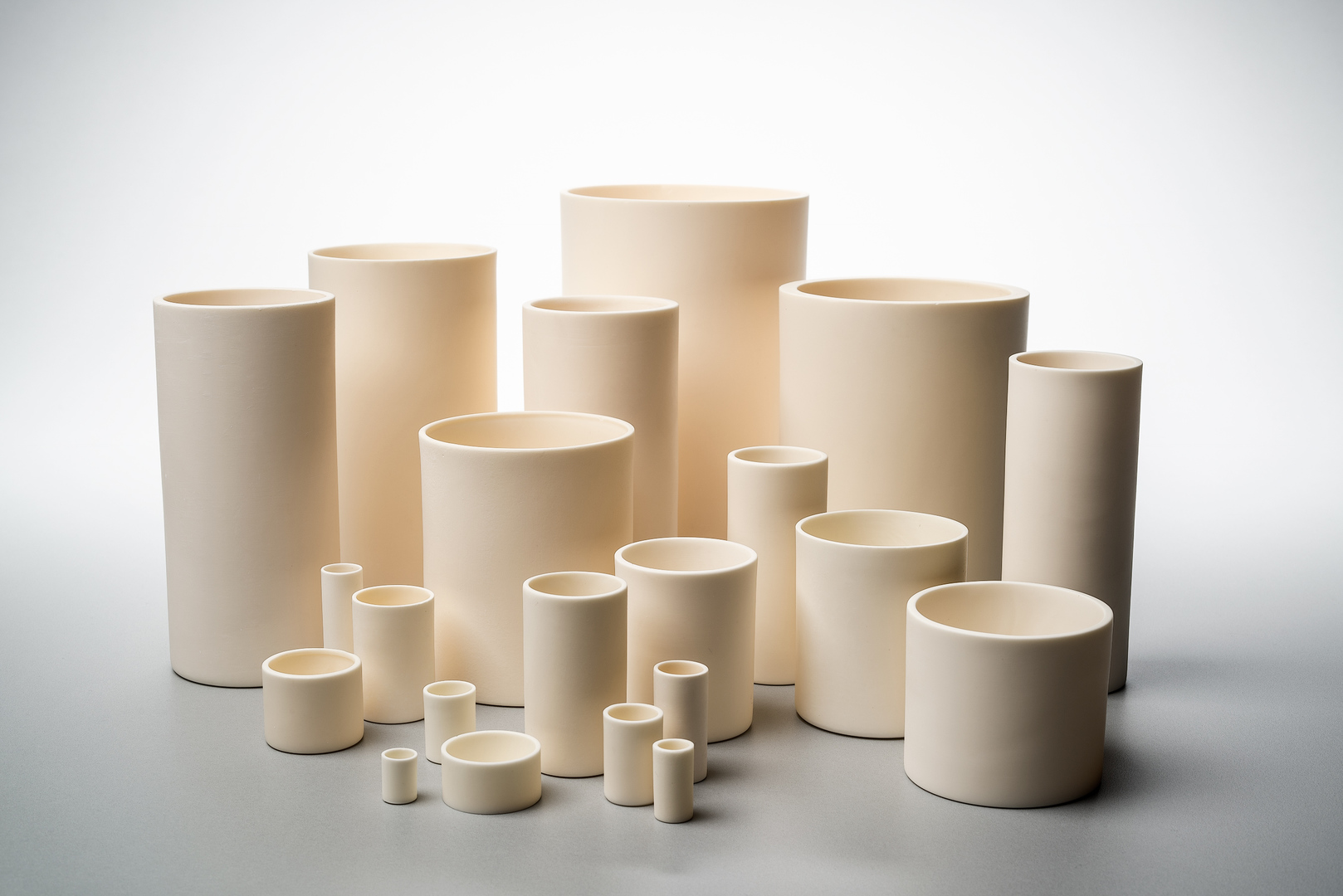

Crucibles

Product number Top ⊘ † Bottom ⊘ † Wall width Height Capacity (ml) ††
CN-0001 12 12 1 16 1
CN-0002 14 14 2 25 1.8
CN-0004-W 18 18 2 25 4
CN-0005-W 20 20 2 30 6
CN-0006 16 16 2 51 6
CN-0007 18 18 2 40 6
CN-0009 34 34 2 17 11
CN-0015 36 36 3 29 18
CN-0025 30 30 2 45 23
CN-0050 35 35 2.5 65 44
CN-0055 41.5 41.5 4 66 54
CN-0090 40 40 2 90 89
CN-0100 53 53 2.5 66 110
CN-0175 64 64 2.5 72 190
CN-0200 52 52 3.5 130 200
CN-0325 65 65 5 140 315
CN-0500 70 70 4 150 440
CN-0550 83 83 3 100 450
CN-0750 83 83 3 160 725
CN-1650 115 115 4 180 1575

† All measurements are outer dimensions. Individual pieces will vary due to the nature of ceramics.

†† Note: capacities are a guide only. These crucibles should not be used for volumetric measuring.

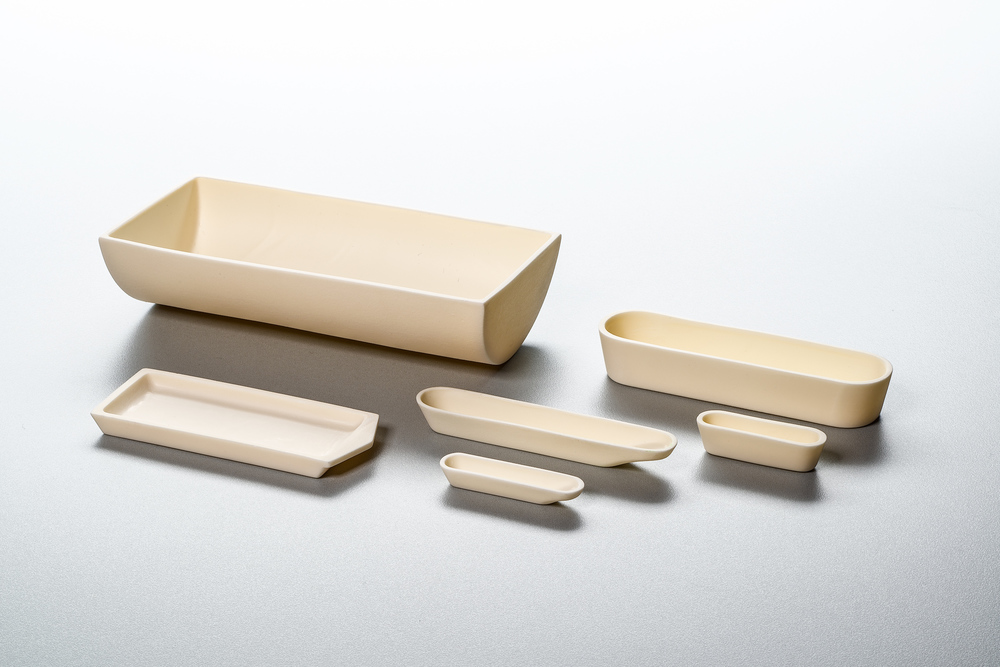

Combustion Boats

Product number Top length† Top width † Height Wall width Capacity (ml) ††
CB-0001 48 11 7 1.5 1
CB-0003 43 13 11 1.5 2
CB-0005 90 15 10 2 5
CB-0012 94 36 7 3 12
CB-0025 100 24 15 2 25
CB-0200* 146 70 35 2.5 200

* CB-0200 has a rounded base (resembling half of a cylinder, cut lengthways). All other combustion boats have flat bases.

† All measurements are outer dimensions. Individual pieces will vary due to the nature of ceramics.

†† Note: capacities are a guide only. These crucibles should not be used for volumetric measuring.

Rectangular Trays

Product number Length † Width † Height Wall width Capacity (ml)† †
RT-0050 82 55 17 3 40

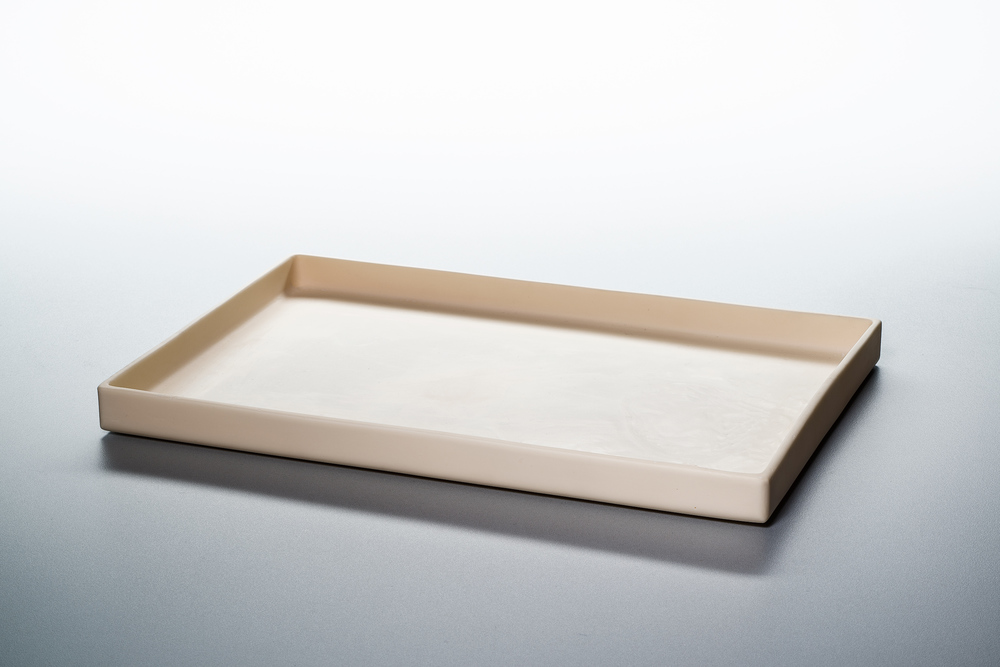

RT-0700 280 190 20 4.5 530
RT-0200 140 55 44 3 200

See also: CB-0012.

†All measurements are outer dimensions. Individual pieces will vary due to the nature of ceramics.

† †Note: capacities are a guide only. These crucibles should not be used for volumetric measuring.

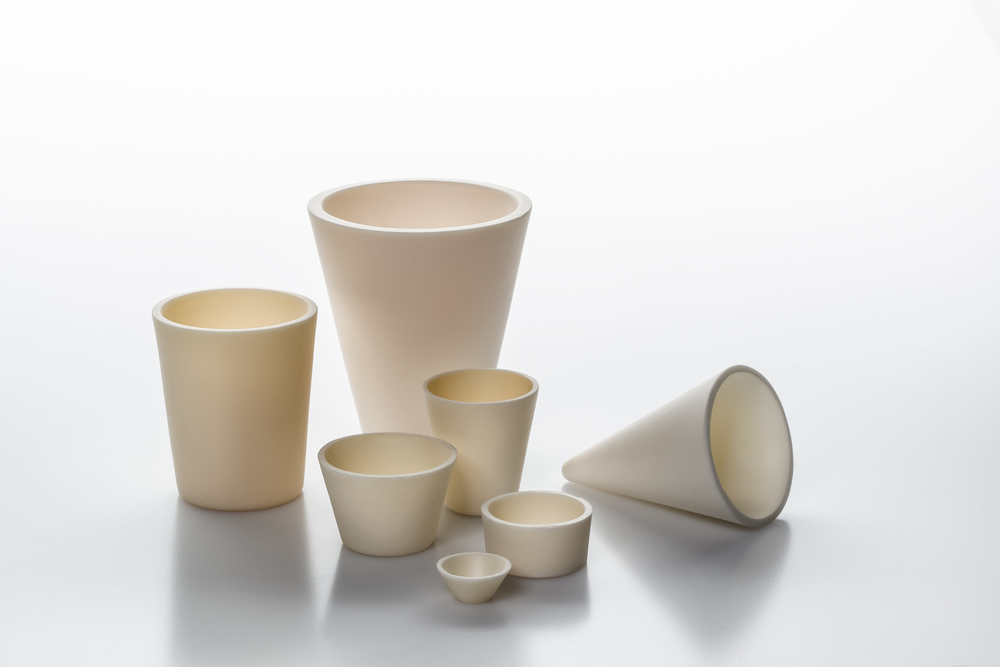

Conical Crucibles

Product number Top ⊘ † Bottom ⊘ † Wall width Height Capacity (ml) ††
CC-00004 15 7 1.2 7 0.35
CC-00015 23 22 1.5 11.5 2.8
CC-0008 26 16 1.5 29 7
CC-0007 30 20 1 20 7.5
CC-0012 35 4 2 50 12
CC-0030 36 28 2 43 25
CL-0030* 48 2 30 30
CT-0040* 48 26 2 46 40
CC-0095 51 25 3.5 59 43

*CT- or CL- denotes a crucible with curved or angled walls.

†All measurements are outer dimensions. Individual pieces will vary due to the nature of ceramics.

† †Note: capacities are a guide only. These crucibles should not be used for volumetric measuring.

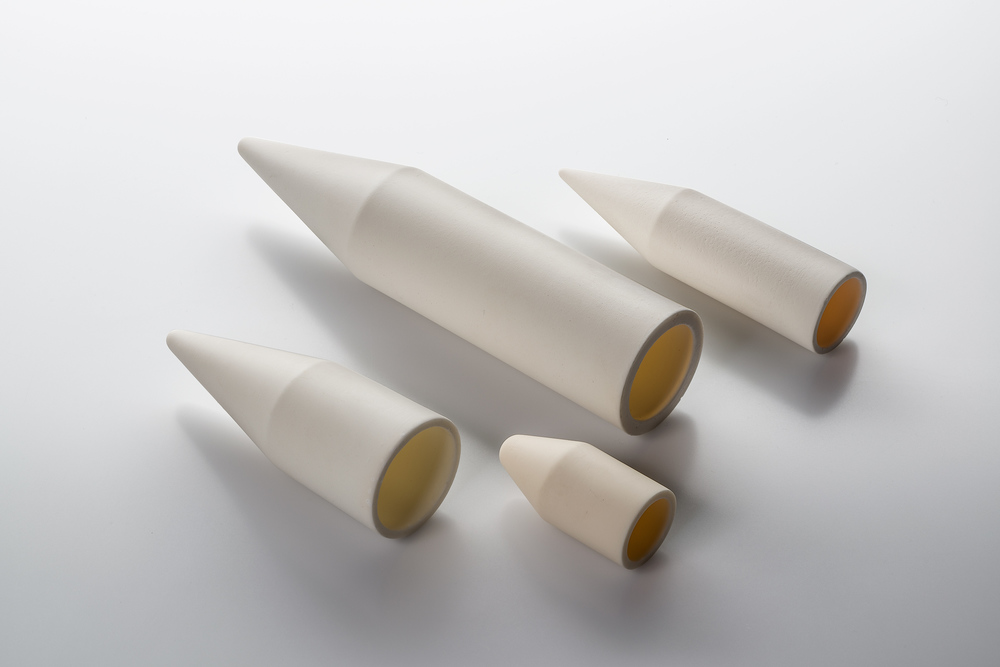

Crystal Growing

Product number Top ⊘ † Wall width Height Capacity (ml) ††
CC-0009 22 2 46 9
CC-0035 33 2.5 88 35
CG-0015 25 3 95 15
CG-0055 35 4 150 55

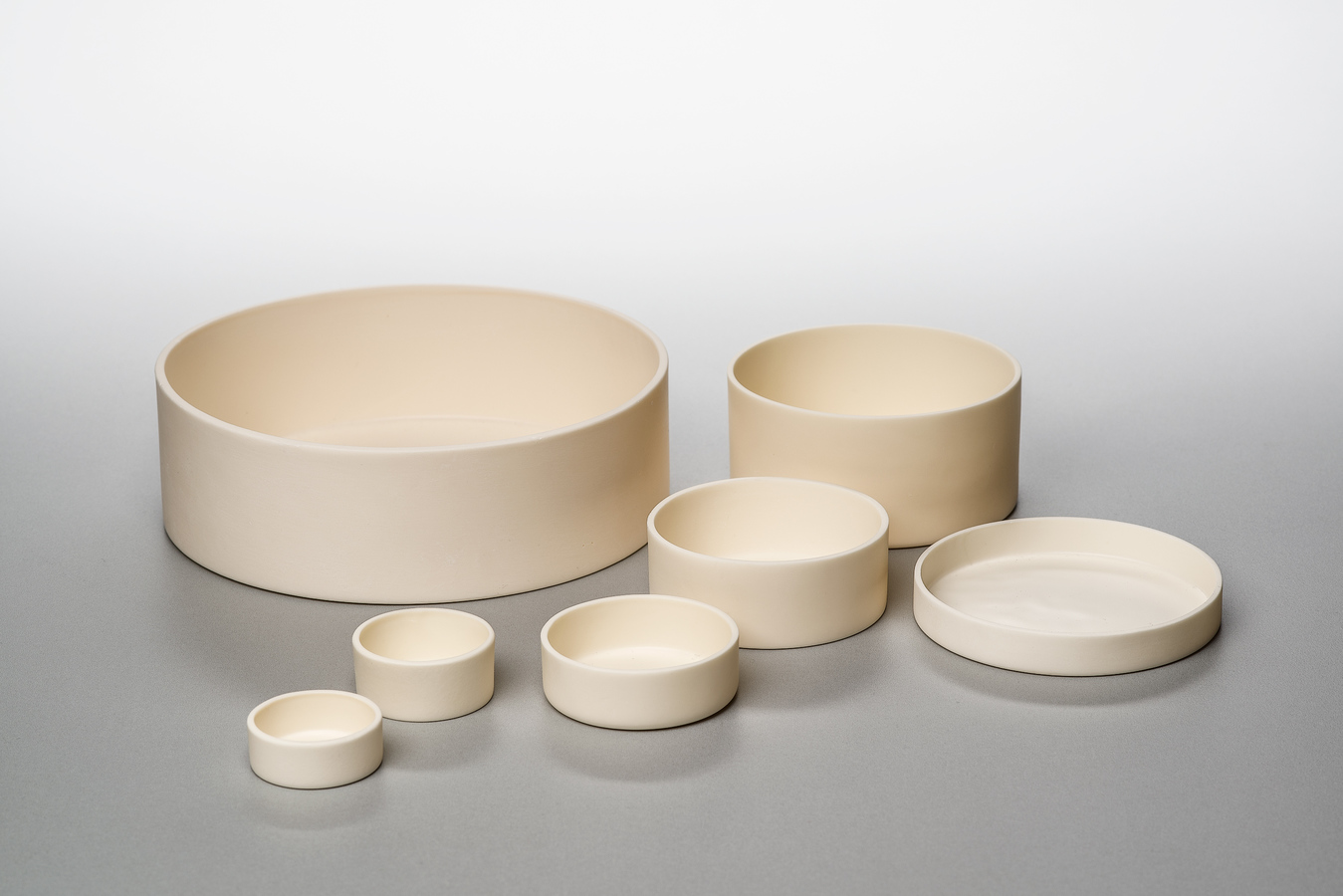

Dishes

Product number Top ⊘ † Bottom ⊘ † Wall width Height Capacity (ml) ††
CD-0010 41 41 2 15 14
CD-0020 45 45 2 20 24
CD-0050 60 60 2 20 44
CD-0050 60 60 2 20 44
CD-0070 102 102 2 14 90
CD-0080 78 78 3 30 109
CD-0325 102 102 3 49 330
CD-1000 180 180 6.5 56 1080
CLL 91 91 3 9 34
CLM 44.5 44.5 2 4 3
CLML 78.5 78.5 2.5 8 23

† All measurements are outer dimensions. Individual pieces will vary due to the nature of ceramics.

†† Note: capacities are a guide only. These crucibles should not be used for volumetric measuring.

See also our tiles and discs

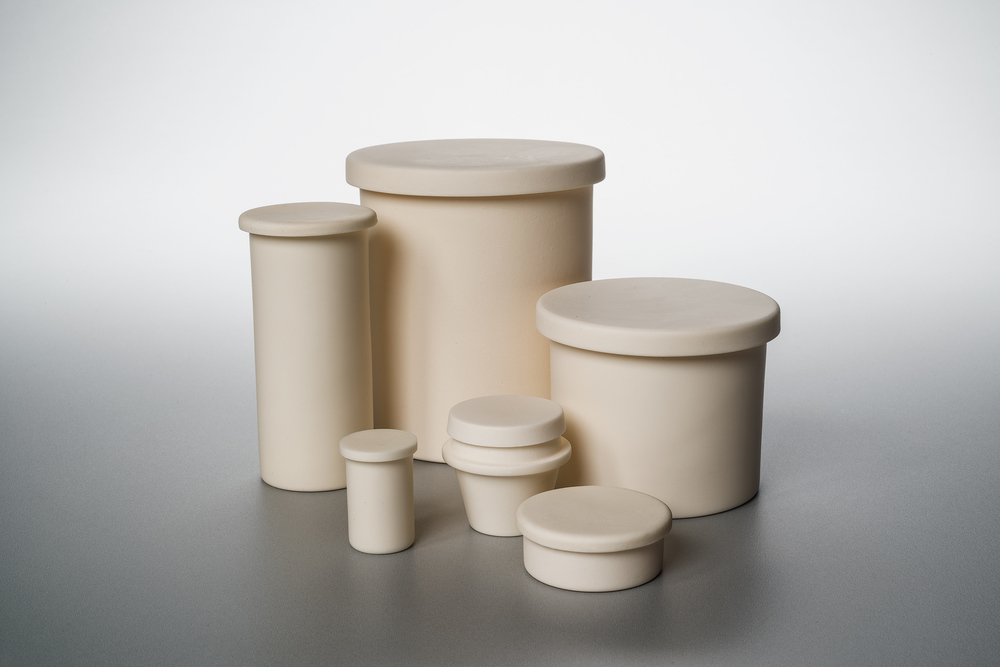

Lids/shallow dishes

Product number Top ⊘ † Wall width Height Capacity (ml) ††
CLL 91 3 9 34
CLM 44.5 2 4 3
CLML 78.5 2.5 8 23

†All measurements are outer dimensions. Individual pieces will vary due to the nature of ceramics.

† †Note: capacities are a guide only. These crucibles should not be used for volumetric measuring.
